Interlude.Form.Create

In Depth

Form.Create(title, elements, submitText: "Submit", cancelText: "Cancel", width: 420, maxHeight: 800, formId: "", rememberValues: true, headlessUseDefaults: false, theme: null, options: null)

Builds a form without showing it, for saving to JSON or for showing later.

Splitting building from showing is what makes a form a document. Build it here, write it with Form.ToJson, and the definition can be reviewed in a pull request, diffed between releases and loaded by a graph that did not build it.

It is also the way to check a form without a window appearing: feed the result to Form.Check. Nothing is drawn and nothing is remembered until it reaches Form.ShowDefinition.

The inputs are:

  • title (string) — Shown in the window's title bar.
  • elements (list of object) — The form's contents, built with the Input and Layout nodes.
  • submitText (string, defaults to "Submit") — Caption of the confirm button.
  • cancelText (string, defaults to "Cancel") — Caption of the cancel button.
  • width (number, defaults to 420) — Window width in pixels.
  • maxHeight (number, defaults to 800) — Height at which the form starts scrolling.
  • formId (string, defaults to "") — Identifies this form across runs.
  • rememberValues (boolean, defaults to true) — Pre-fill with the last answers.
  • headlessUseDefaults (boolean, defaults to false) — Return defaults instead of stopping when there is no UI.
  • theme (object, defaults to null) — Built with the Theme nodes.
  • options (object, defaults to null) — Built with Form.Options.

Returns form — The form definition.

Search terms: form, create, build, definition, template.

About the Form nodes

Showing a form and getting the answers back.

A note on re-execution, because it surprises everyone once: Dynamo re-runs a graph whenever anything upstream changes, and a node that shows a dialog will show it again. Interlude does not pretend otherwise — it gives you the tools to control it. The trigger port skips the dialog and returns the last answers when it is false, so a form can be gated behind a button or a boolean. A form already on screen is never opened twice: a second execution waits for the first window and returns its result rather than stacking dialogs. And Manual run mode remains the right setting for any graph built around a form.

Example File

An example graph ships beside this page: Interlude.Form.Create.dyn

Form.Create

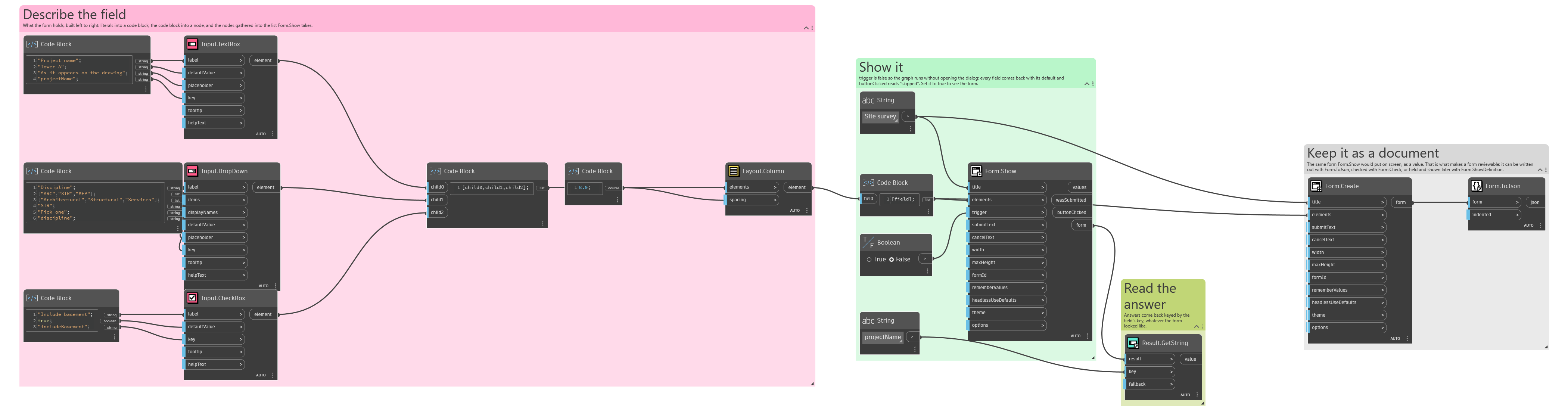

The form it builds:

Form.Create form
