Interlude.Input.Slider

In Depth

Input.Slider(label, minimum: 0, maximum: 100, defaultValue: 0, step: 1, decimalPlaces: 2, key: "", tooltip: "", helpText: "")

A number chosen by dragging along a track, with the value shown beside it.

Good when the range matters more than the exact figure — an opacity, a tolerance, a percentage — and the user is choosing by feel. When the exact figure is the point, and especially when it might be typed from a specification, Input.Number is kinder: a slider cannot be typed into.

The answer is a number. step snaps the track to increments; zero lets it move continuously.

The inputs are:

  • label (string) — Caption shown beside the field.
  • minimum (number, defaults to 0) — Left end of the track.
  • maximum (number, defaults to 100) — Right end of the track.
  • defaultValue (number, defaults to 0) — Value the slider starts at.
  • step (number, defaults to 1) — Snap increment. Zero for continuous.
  • decimalPlaces (integer, defaults to 2) — Digits shown in the readout.
  • key (string, defaults to "") — Name of this answer in the results. Derived from the label when empty.
  • tooltip (string, defaults to "") — Hover text.
  • helpText (string, defaults to "") — A line of guidance shown under the field.

Returns element — The form element.

Search terms: slider, range, drag, number.

About the Input nodes

The fields a user answers.

Every input returns an element describing the control, not the control itself, and every one takes the same three trailing options: key, which names the answer in the results dictionary; tooltip; and helpText. Leave key empty and it is derived from the label — convenient for a quick form, but give real keys to any graph you intend to keep, because renaming a label would otherwise rename the answer.

Choice inputs take the values themselves, not their display names. Selecting an option hands back the original object — a Revit element, a family type, whatever was put in — so the answer is usable directly instead of needing a lookup back from a string.

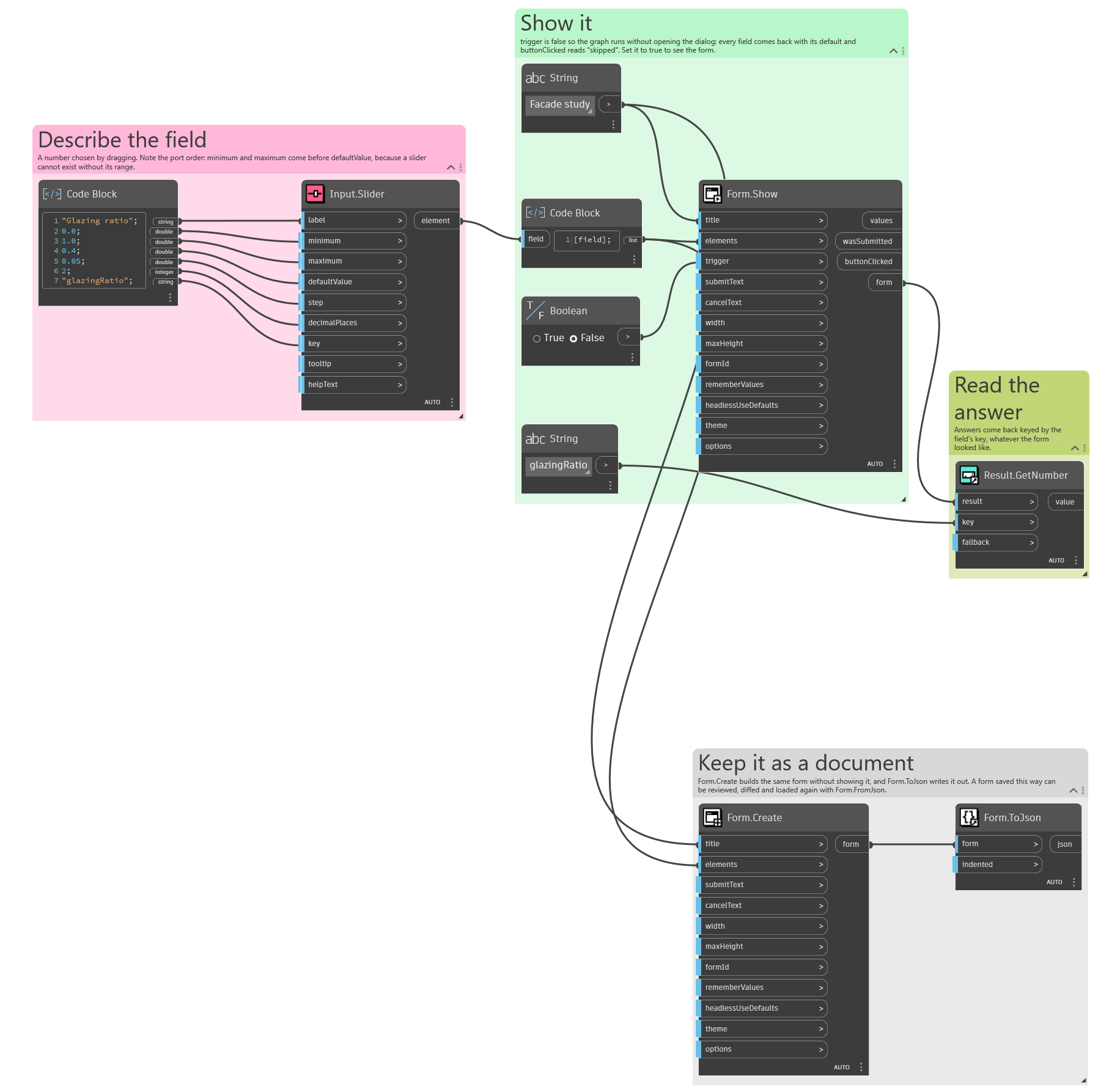

Example File

An example graph ships beside this page: Interlude.Input.Slider.dyn

Input.Slider

The form it builds:

Input.Slider form
