Interlude.Input.TextArea
In Depth¶
Input.TextArea(label, defaultValue: "", lines: 4, placeholder: "", key: "", tooltip: "", helpText: "")
A multi-line text field, for notes, justifications and descriptions.
The answer is a single string with line breaks inside it, not a list of lines. Split it downstream if you want the lines separately.
lines sets the height the field occupies, not a limit on what can be typed: the box scrolls once the text outgrows it.
The inputs are:
label(string) — Caption shown beside the field.defaultValue(string, defaults to"") — Value the field starts with.lines(integer, defaults to4) — Visible height, in lines.placeholder(string, defaults to"") — Grey prompt shown while the field is empty.key(string, defaults to"") — Name of this answer in the results. Derived from the label when empty.tooltip(string, defaults to"") — Hover text.helpText(string, defaults to"") — A line of guidance shown under the field.
Returns element — The form element.
Search terms: text, multiline, notes, paragraph, textarea.
About the Input nodes¶
The fields a user answers.
Every input returns an element describing the control, not the control itself, and every one takes the same three trailing options: key, which names the answer in the results dictionary; tooltip; and helpText. Leave key empty and it is derived from the label — convenient for a quick form, but give real keys to any graph you intend to keep, because renaming a label would otherwise rename the answer.
Choice inputs take the values themselves, not their display names. Selecting an option hands back the original object — a Revit element, a family type, whatever was put in — so the answer is usable directly instead of needing a lookup back from a string.
Example File¶

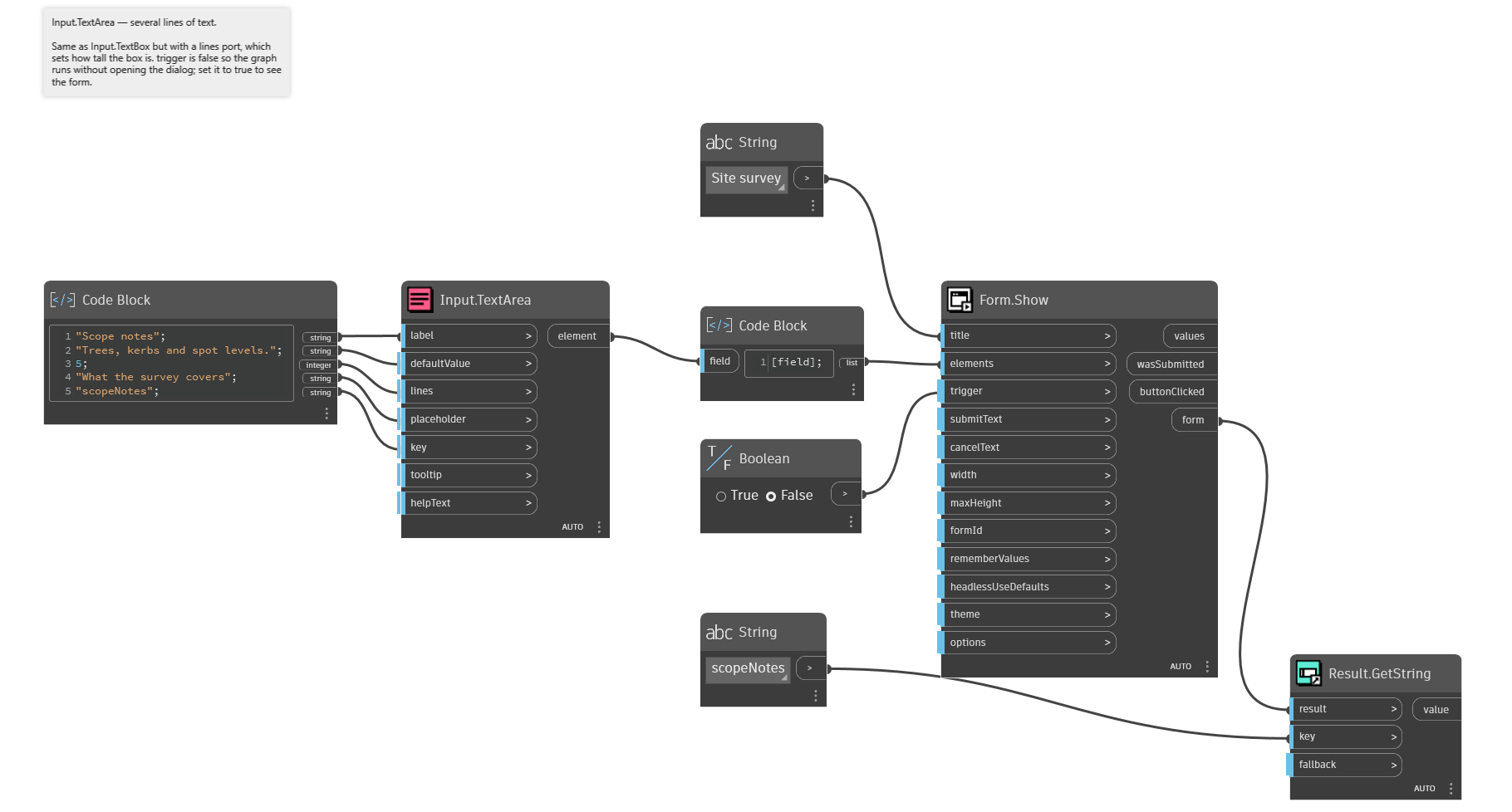

An example graph ships beside this page: Interlude.Input.TextArea.dyn
The form it builds:
