Interlude.Layout.Dock
In Depth¶
Layout.Dock(elements, lastChildFills: true)
Elements docked to the edges of the available space. Use Layout.Docked to choose each element's edge; the last one fills what is left.
The inputs are:
elements(list of FormElement) — What goes inside.lastChildFills(boolean, defaults totrue) — Let the final element take the remaining space.
Returns element — The form element.
Search terms: dock, dockpanel, edges, anchor.
About the Layout nodes¶
Arranging and decorating a form: sections, rows, grids, tabs, and the elements that show something rather than ask something.
Every container takes a list of elements. None of them has a single-element overload, on purpose: with both available, a graph that passes one element to a list port gets replication instead of a container, and produces N containers of one child each rather than one container of N. Pass a list, even a list of one.
Example File¶
An example graph ships beside this page: Interlude.Layout.Dock.dyn

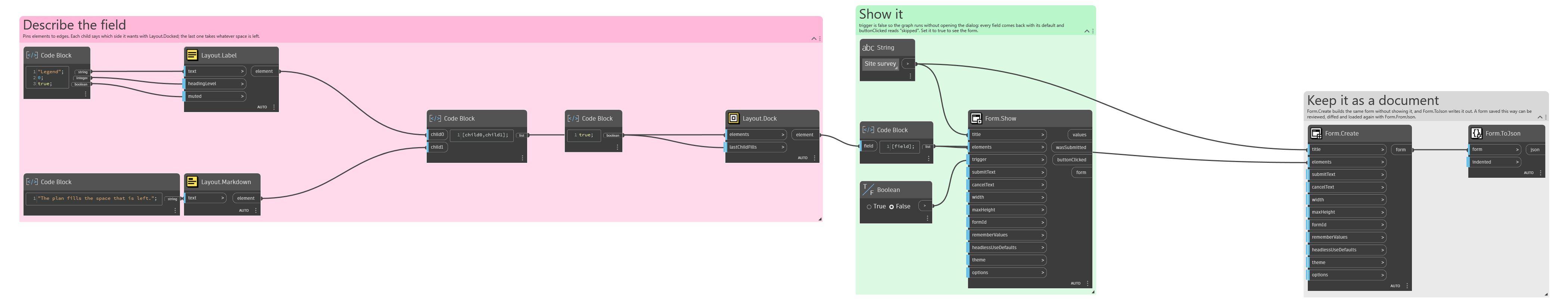

The form it builds:
