Interlude.Input.TreeSelect

In Depth

Input.TreeSelect(label, nodes: null, allowMultiple: true, defaultValue: null, expandAll: false, key: "", tooltip: "", helpText: "")

A hierarchy to pick from — levels and rooms, disciplines and sheets, folders and files.

The branches are built from Input.TreeItem nodes, nested by feeding items into a parent's children port. As with the flat choice inputs the answer is whatever each item's value was, and with allowMultiple it is a list of them.

A branch that only groups its children should be built with selectable: false, so the user cannot return a category where the graph expects a thing.

The inputs are:

  • label (string) — Caption shown beside the field.
  • nodes (list of object, defaults to null) — The root items of the tree.
  • allowMultiple (boolean, defaults to true) — Whether several items can be chosen at once.
  • defaultValue (list of object, defaults to null) — Which item or items start selected.
  • expandAll (boolean, defaults to false) — Whether every branch starts open.
  • key (string, defaults to "") — Name of this answer in the results. Derived from the label when empty.
  • tooltip (string, defaults to "") — Hover text.
  • helpText (string, defaults to "") — A line of guidance shown under the field.

Returns element — The form element.

Search terms: tree, hierarchy, nested, select.

About the Input nodes

The fields a user answers.

Every input returns an element describing the control, not the control itself, and every one takes the same three trailing options: key, which names the answer in the results dictionary; tooltip; and helpText. Leave key empty and it is derived from the label — convenient for a quick form, but give real keys to any graph you intend to keep, because renaming a label would otherwise rename the answer.

Choice inputs take the values themselves, not their display names. Selecting an option hands back the original object — a Revit element, a family type, whatever was put in — so the answer is usable directly instead of needing a lookup back from a string.

Example File

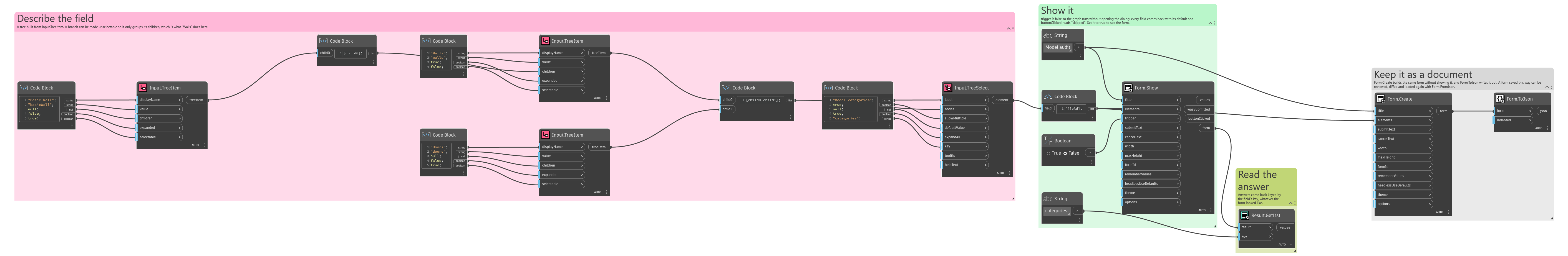

An example graph ships beside this page: Interlude.Input.TreeSelect.dyn

Input.TreeSelect

The form it builds:

Input.TreeSelect form
