Interlude.Layout.Separator
In Depth¶
Layout.Separator(caption: "")
A dividing line, optionally with a caption sitting on it.
The lightest way to group: it separates what is above from what is below without the border, heading and indentation a Layout.Section brings. A captioned separator gives the group a name for the price of one line.
The inputs are:
caption(string, defaults to"") — Optional text drawn on the line.
Returns element — The form element.
Search terms: separator, divider, rule, line, hr.
About the Layout nodes¶
Arranging and decorating a form: sections, rows, grids, tabs, and the elements that show something rather than ask something.
Every container takes a list of elements. None of them has a single-element overload, on purpose: with both available, a graph that passes one element to a list port gets replication instead of a container, and produces N containers of one child each rather than one container of N. Pass a list, even a list of one.
Example File¶
An example graph ships beside this page: Interlude.Layout.Separator.dyn

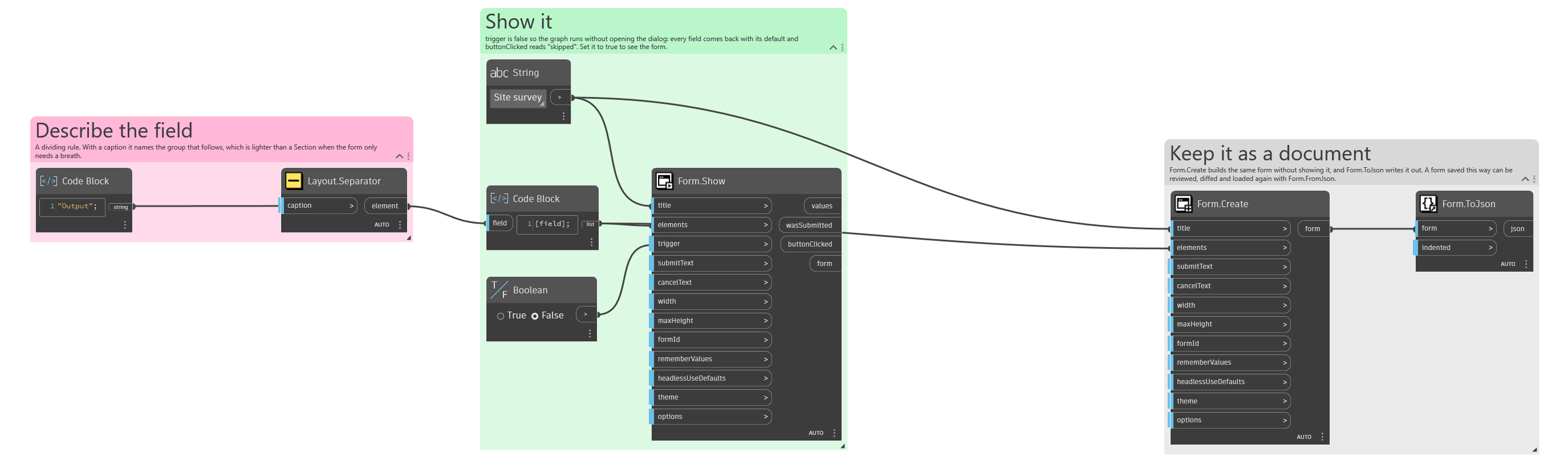

The form it builds:
