Interlude.Input.CheckBox
In Depth¶
Input.CheckBox(label, defaultValue: false, key: "", tooltip: "", helpText: "")
A tick box. The answer is true or false, and never null.
Note where the wording goes: a tick box has no separate label column. What you pass as label is printed beside the box, and the answer key is derived from that wording. Phrase it as the thing being turned on — "Include sheets", not "Sheets" — because the user reads it as a statement they are agreeing to.
This is what Condition.IsChecked tests, which makes it the usual way to reveal part of a form: tick a box, and a group appears.
The inputs are:
label(string) — Text shown beside the box.defaultValue(boolean, defaults tofalse) — Whether the box starts ticked.key(string, defaults to"") — Name of this answer in the results. Derived from the label when empty.tooltip(string, defaults to"") — Hover text.helpText(string, defaults to"") — A line of guidance shown under the field.
Returns element — The form element.
Search terms: checkbox, tick, boolean, toggle, yes, no.
About the Input nodes¶
The fields a user answers.
Every input returns an element describing the control, not the control itself, and every one takes the same three trailing options: key, which names the answer in the results dictionary; tooltip; and helpText. Leave key empty and it is derived from the label — convenient for a quick form, but give real keys to any graph you intend to keep, because renaming a label would otherwise rename the answer.
Choice inputs take the values themselves, not their display names. Selecting an option hands back the original object — a Revit element, a family type, whatever was put in — so the answer is usable directly instead of needing a lookup back from a string.
Example File¶

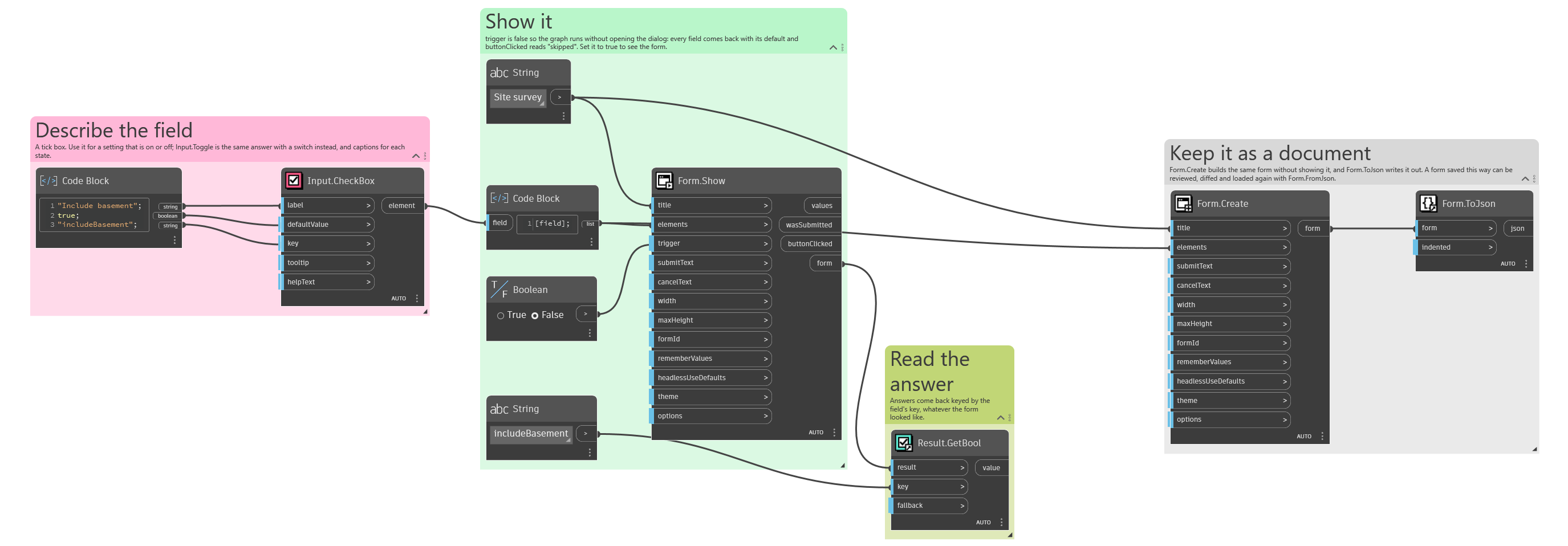

An example graph ships beside this page: Interlude.Input.CheckBox.dyn
The form it builds:
